Centroid Acorn Plasma THC Kit

Centroid Acorn Plasma THC Kit

£749.00 GBP
£749.00 GBP
Sale Sold out
Taxes included.

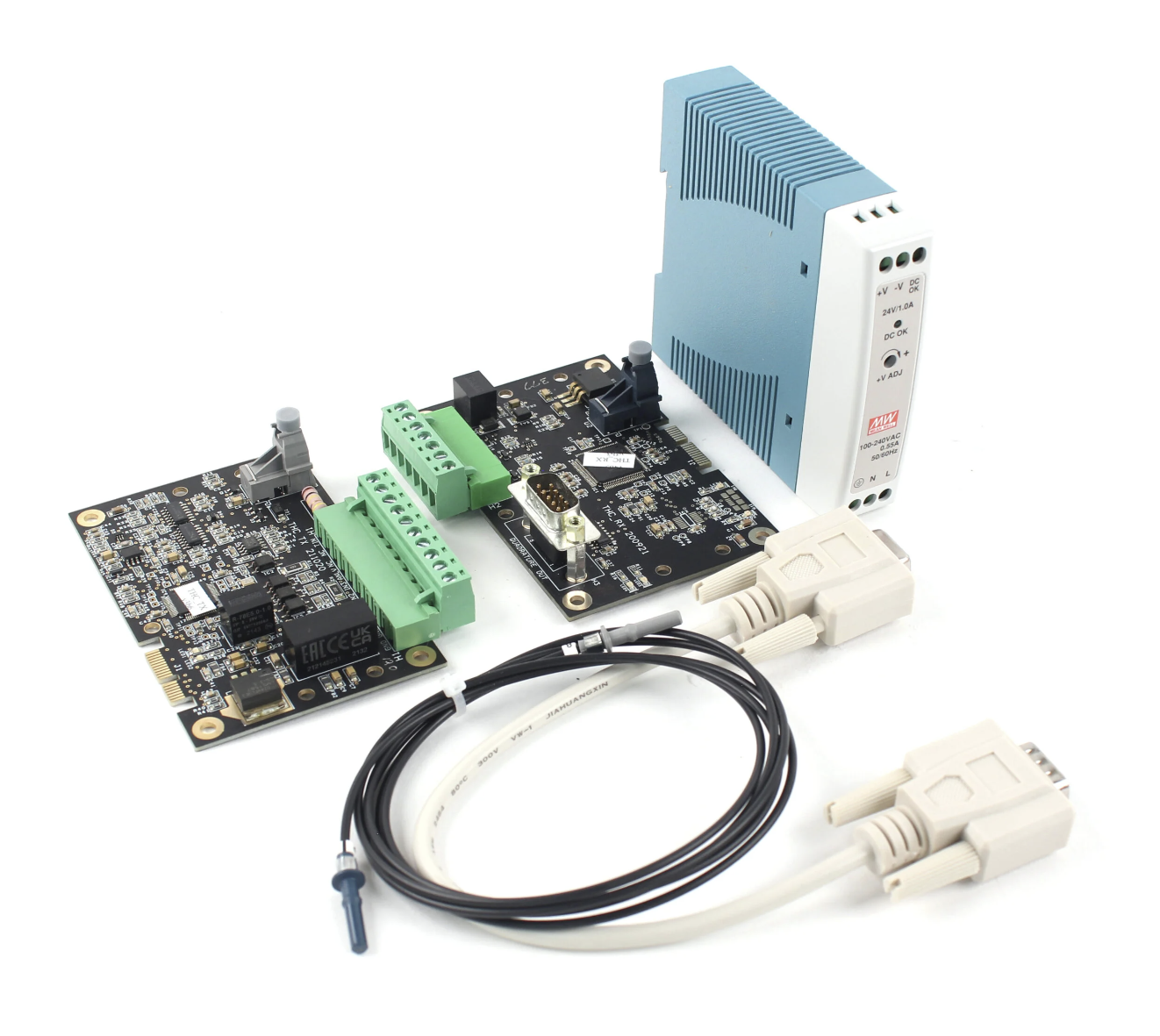

  • Centroid THC controller kit (part # 15149, 15321, 15322) includes:
    • 1x THC TX control board
    • 1x THC RX control board
    • 1x 5' Fiber Optic Cable (TX to RX connection)
    • 1x 12" Shielded Serial Cable M/F Straight (RX-to-DB9 connection)
      • Note: 18" and 36" can be purchased here
    • 1x Din Rail Mount 24 volt power supply

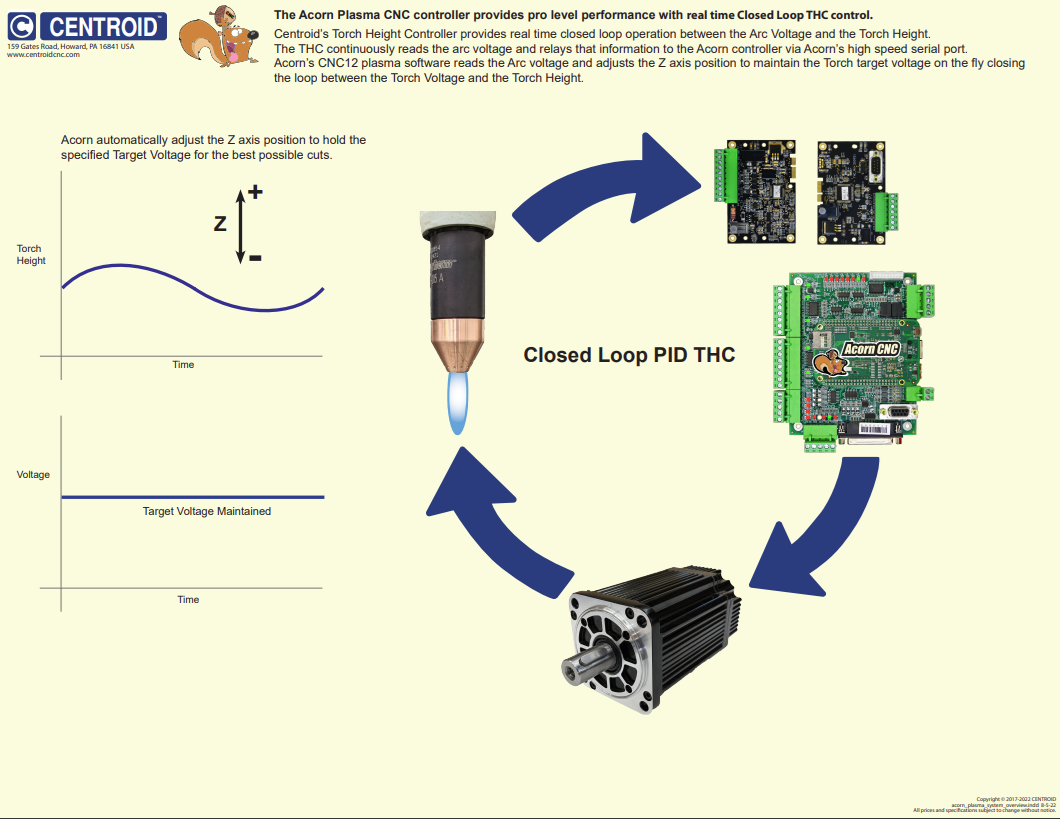

Centroid's Torch Height Controller closes the loop between Plasma Arc Voltage and Torch Height via high-speed fiber optic communication.

The Centroid THC kit provides real-time closed loop operation between the arc voltage and the torch height. The THC reads the arc voltage and sends that information to the CNC controller via fiber optic isolation to Control Board's high-speed encoder port.

Part #15322 for PrimeWeld Cut60 and #15321 for Everlast i/s series include the special Centroid "CNC" cable from the Cutter to the Centroid THC Kit

Requirements:
- Acorn CNC controller kit
- An Acorn CNC12 Plasma Pro software license
- CNC12 v5.20+ Software
     OR
- AcornSix CNC controller kit
- An AcornSix CNC12 Plasma Pro software license
- CNC12 v5.20+ Software
     OR
- Hickory CNC controller kit
- A Hickory CNC12 Plasma Pro software license
- CNC12 v5.20+ Software
