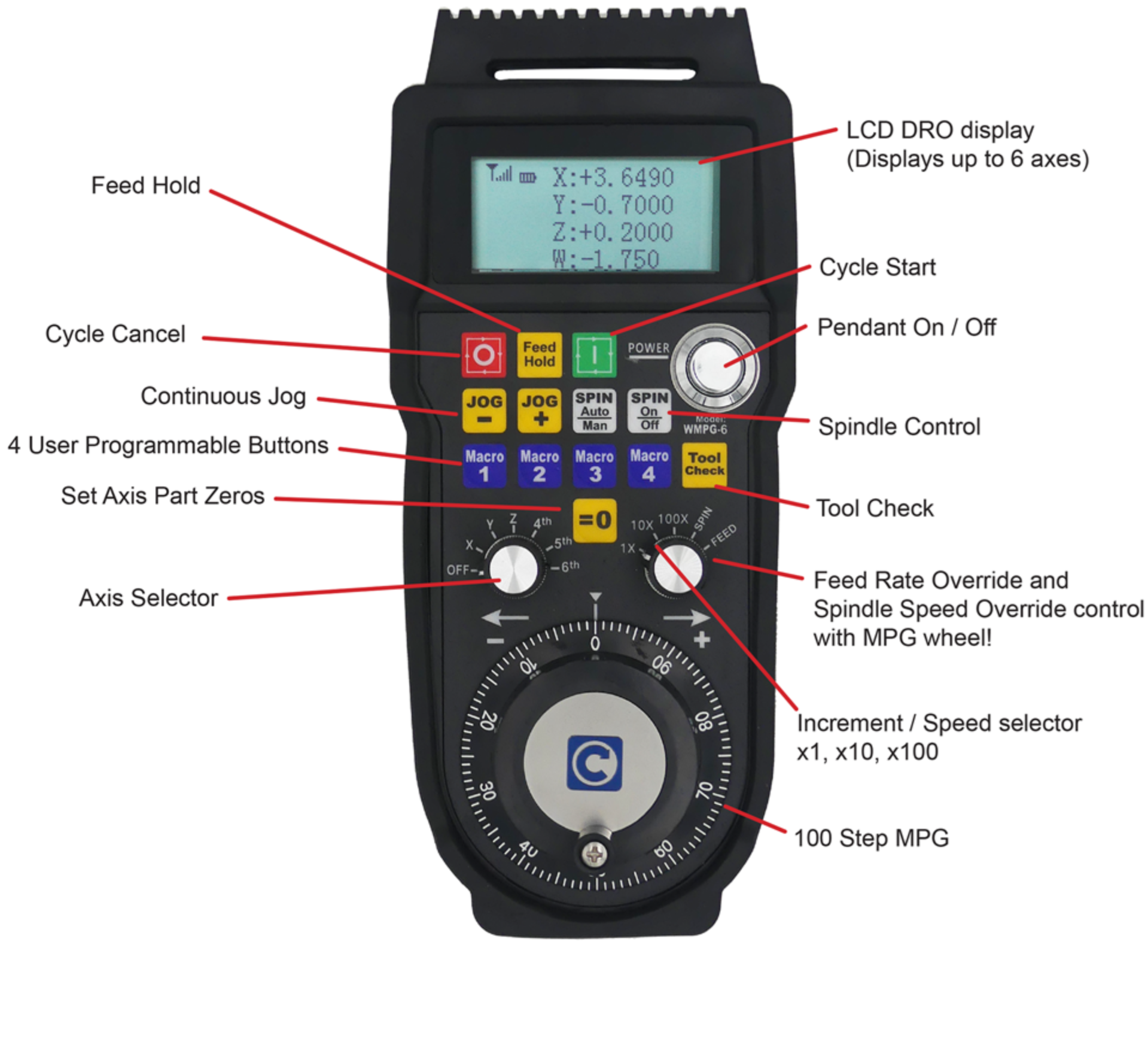

WMPG-6 CNC Control Pendant

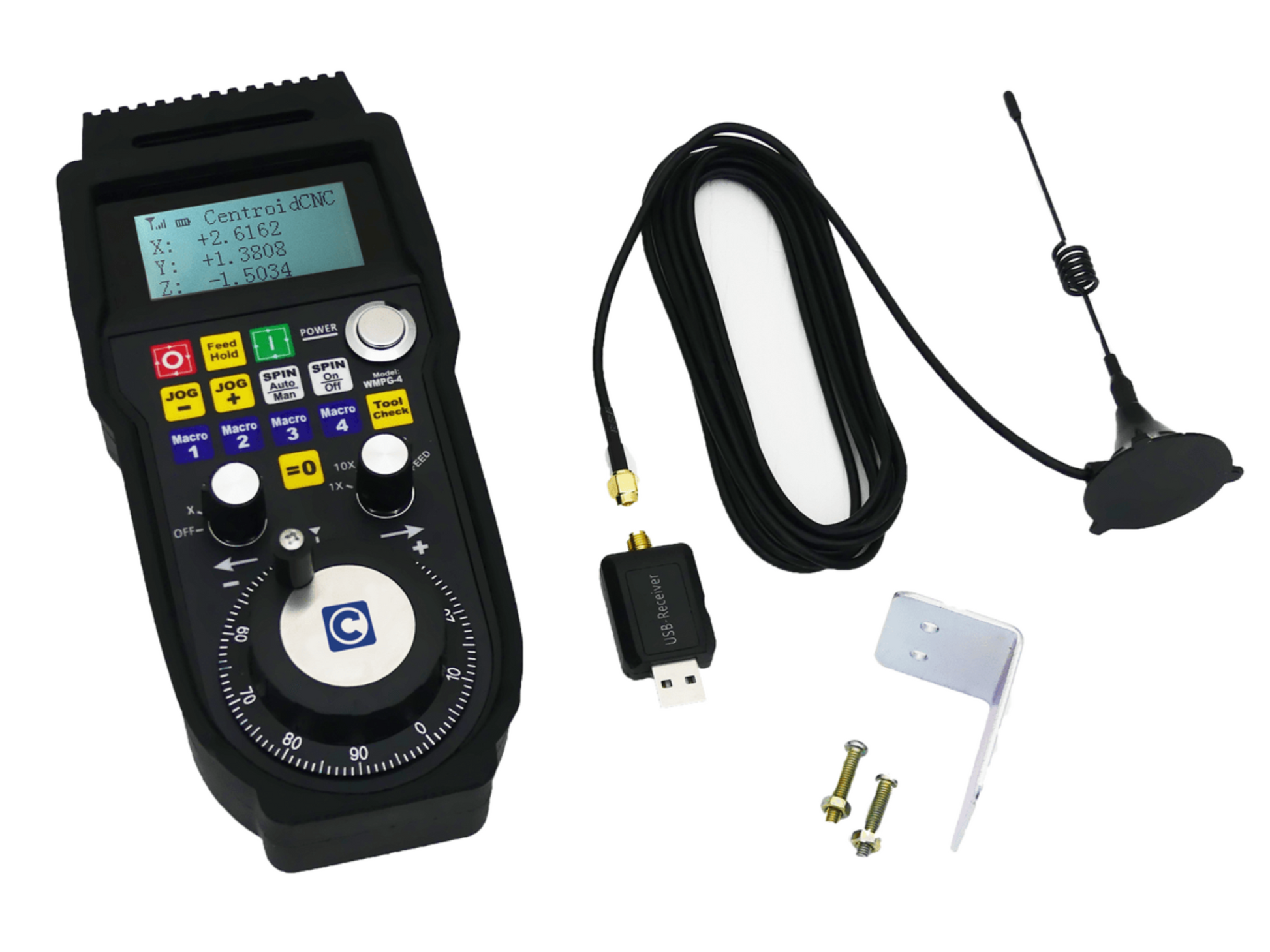

• WMPG-6 Kit (#9606) includes:

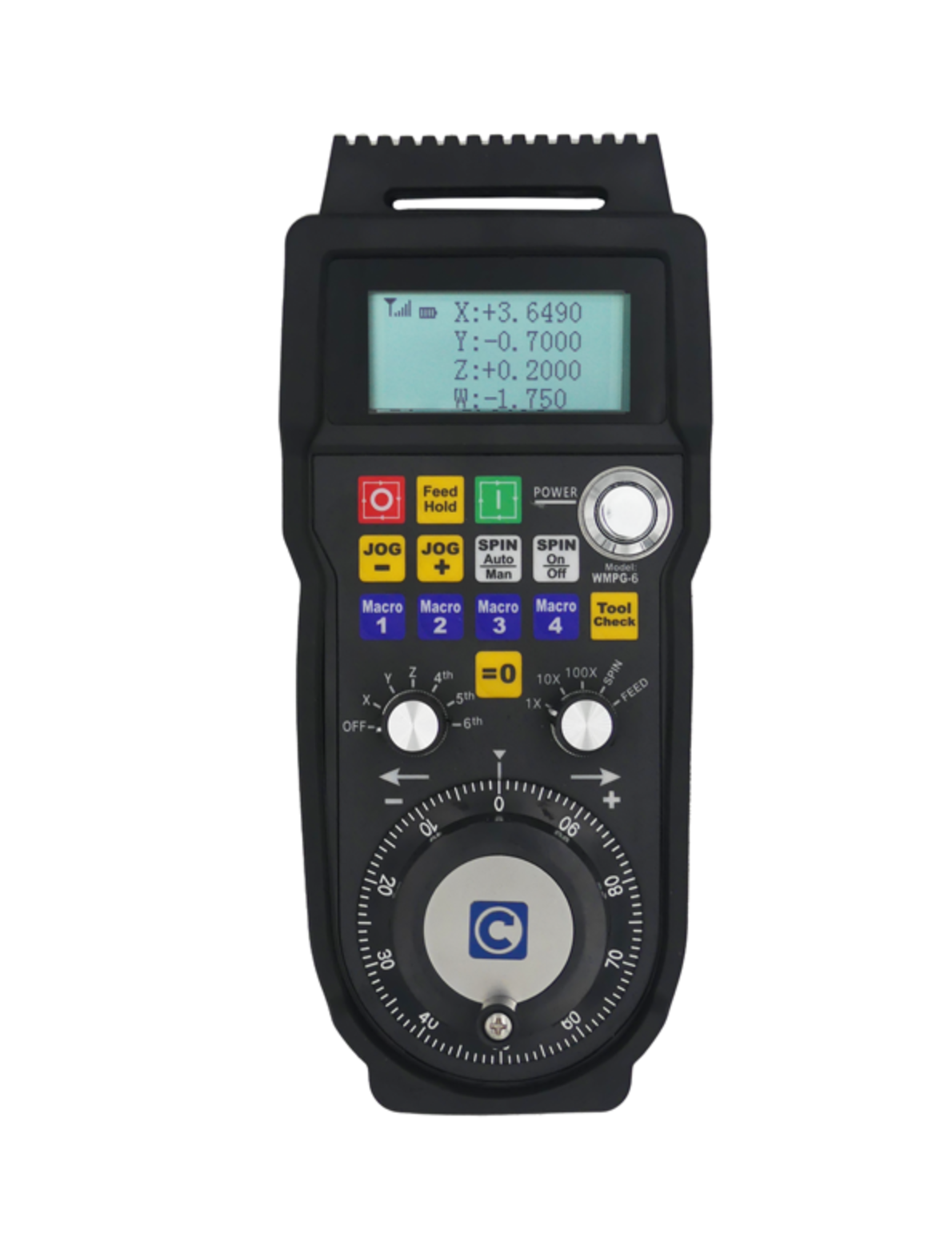

  • 1x WMPG-6 Wireless MPG pendant
  • 1x USB Wireless Transmitter / Receiver
  • 1x Mounting Bracket

Take the control to where the work is! A game changing tool, the Centroid Wireless MPG handwheel CNC Control pendant allows the operator to set up jobs and tools conveniently and precisely remotely. No software or drivers to install. Plug and Play with Centroid CNC12 Pro CNC software, just plug in the included USB transmitter/receiver and start using it! Perfect for all types of Mills, Lathes, Routers and other specialty CNC machines. Control up to Six Axes from the palm of your hand! Multiple units can be used in the same location without issue.

Requirements for use with Acorn
- Acorn CNC12 v4.64+ w/ Mill Pro, Mill Ultimate, Lathe Pro, Lathe Ultimate, Router Pro, Router Ultimate, Plasma Pro, or Plasma Ultimate License

Oak, Allin1DC, Hickory, and MPU11 system Requirements
- CNC12 v4.20+ with Pro or Ultimate License
- Older systems may require a PLC update to fully support WMPG-6 features and functionality. Contact us or your System Integrator for compatibility questions, upgrade instructions, or a PLC Upgrade quote, if required due to existing custom PLC functionality.

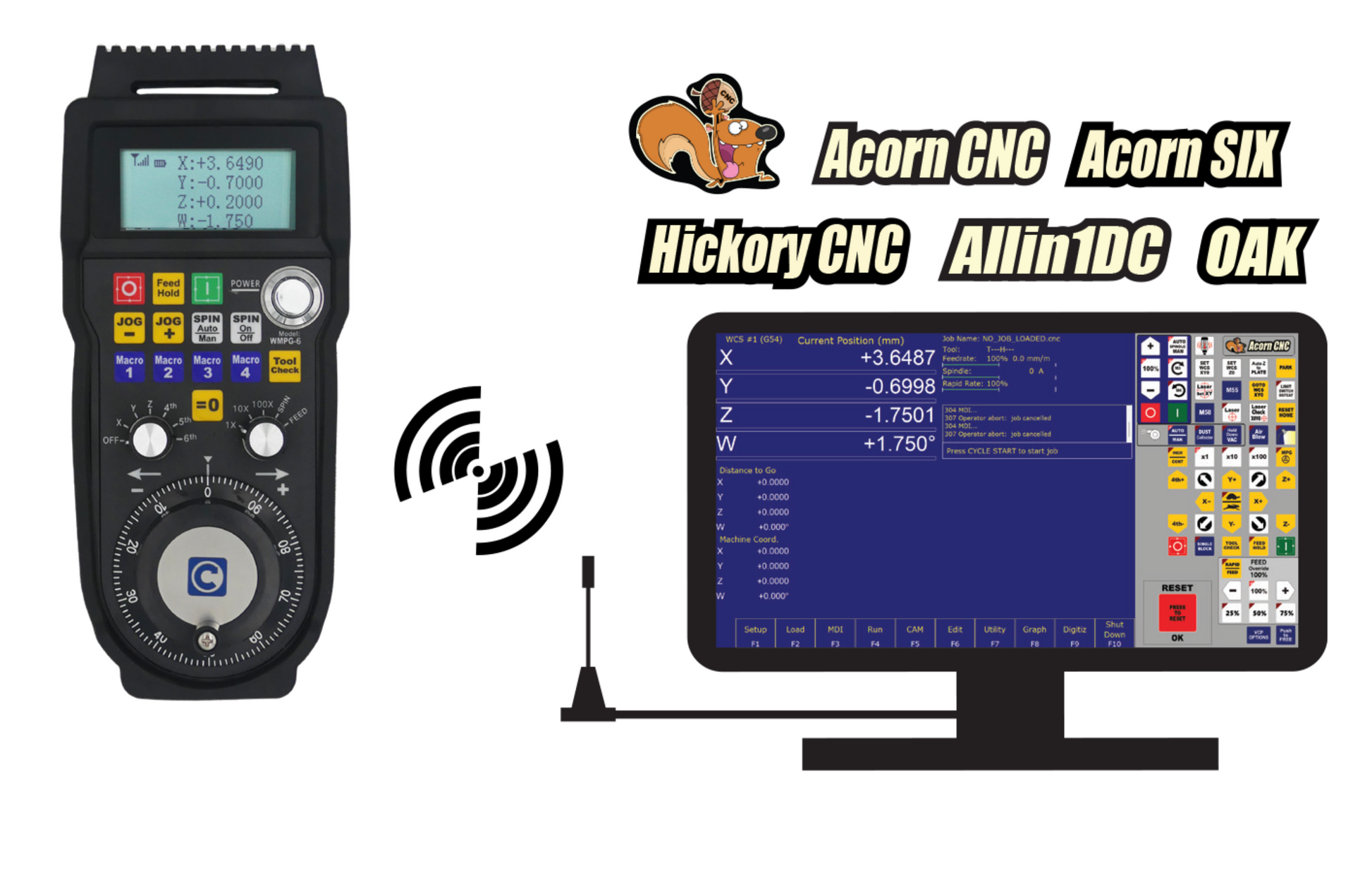

Compatible with:

• Acorn CNC Controller Kit (14455)
• AcornSix CNC Controller Kit (15136)
• Allin1DC CNC Controller Kit (14999)
• Oak CNC Controller Kit (15000)
• Hickory CNC Controller Kit (14924)
